Oil Tan Delta Test System
We are a leading Manufacturer of transformer oil tan delta test kit from Nashik, India.
Transformer Oil Tan Delta Test Kit
Request Callback
Get Latest Price
Product Brochure
| Brand | MOTWANE |
| Display | Alphanumeric LCD Display |
| Weight | 24 Kg |
| Voltage | 400-2400 VAC and 100 - 1000 VDC |
| Power Supply | 110V / 230V,50/60Hz +-15% |
| Dimension | 510mm X 320mm X 380mm |
| Cell Constant | 621.5 Nominal |
| Temperature Range | up to 150 DegC |
| Tan Delta Range (DF) | 0-1.000 |
| Accuracy of Tan Delta | +- 1% of reading +- 0.0001 |
| Resolution of Tan Delta | 1 x 10e-4 |
| Capacitance Range | 0 -1600pF |
| Capacitance Accuracy | +- 0.1% of reading +- 0.1 pF |
| Resolution of Capacitance | 0.01 pF |
| Dielectric Constant | 1 to 20 when using a typical oil test cell (C= 55pF) |
| Dielectric Constant Accuracy | +- 0.1% |
| Resolution of Dielectric Constant | 0.001 |
| Dielectric Loss | 0 - 10.00 watts |
| Dielectric Loss Accuracy | +- 1% of reading +- (10e-5 watts) |
| Dielectric Loss resolution | 0.001 milli watts |
| Resistivity Range | 10e9 - 10e15 Ohm cm |
| Resistivity Range Accuracy | +-2% to 10% |
| Resistivity Range resolution | 3 Digit |
| Cell capacitance | 55 pF. Nominal |
| Cell material | Stainless steel (SS 316) |
| Insulation material | Teflon (PTFE) |
| Gap in between two Electrodes | 2 mm.(As specified in IEC 247) |
| Temp Sensing probe | Platinum Wire Probe (PT-100) |
| Heating element | Induction Type |
| Data storage | 250 results |
| PC Interface | USB for data downloading |
Features:
Description:
Motwane's MOTR is Micro Processor based compact kit for precise measurement of the Tan Delta & resistivity of insulating oils. It is single unit design loaded with International test standards for automatic measurement of all parameters as per the standard. The customized test sequences available as per user’s requirement. Test cell is designed as per IEC 60247 with precise control for measuring tan delta and resistivity at 27° C & 90° C .MOTR has auto oil drain facility after test. It is provided with internal memory & printer. USB interface available for data transfer & report generation facility. The calibrator with standard Tan delta & Resistivity ranges available for validating performance of the kit.
Application:
The dissipation factor test is widely used as an acceptance and preventive maintenance test for insulating oil. Oil dissipationfactor testing in the field is usually done with the Oil Tan delta & Resistivity Test Kit . The dissipation factor of new oil should not exceed 0.05 percent at 25o C. A high Tangent Delta in used oil indicates deterioration, contamination, or both with moisture, carbon, varnish, Glyptal, sodium soaps, or deterioration products. Used oil with a Tangent Delta in excess of 0.5 percent should be further analysed in a laboratory to determine the cause of the high dissipation factor. Oil with a Tangent Delta in excess of 2.0 percent may be an operational hazard. It should be investigated and either reconditioned or replaced.
Measuring Oil Quality in Oil filled electrical equipment:
Standard Accessories:
- Dissipation factor , Volume Resistivity, Dielectric
- constant (Permittivity), Watt loss
- Oil test heating chamber with precise
- temperature control
- Test cell according to IEC 60247
- Preprogrammed & customized Test sequences
- Inbuilt Thermal Printer
- Internal Memory for 250 Test
- USB Interface
- Portable calibrator
- Bluetooth connectivity
- Oil Auto drain facility ( Optional )
Description:
Motwane's MOTR is Micro Processor based compact kit for precise measurement of the Tan Delta & resistivity of insulating oils. It is single unit design loaded with International test standards for automatic measurement of all parameters as per the standard. The customized test sequences available as per user’s requirement. Test cell is designed as per IEC 60247 with precise control for measuring tan delta and resistivity at 27° C & 90° C .MOTR has auto oil drain facility after test. It is provided with internal memory & printer. USB interface available for data transfer & report generation facility. The calibrator with standard Tan delta & Resistivity ranges available for validating performance of the kit.
Application:
The dissipation factor test is widely used as an acceptance and preventive maintenance test for insulating oil. Oil dissipationfactor testing in the field is usually done with the Oil Tan delta & Resistivity Test Kit . The dissipation factor of new oil should not exceed 0.05 percent at 25o C. A high Tangent Delta in used oil indicates deterioration, contamination, or both with moisture, carbon, varnish, Glyptal, sodium soaps, or deterioration products. Used oil with a Tangent Delta in excess of 0.5 percent should be further analysed in a laboratory to determine the cause of the high dissipation factor. Oil with a Tangent Delta in excess of 2.0 percent may be an operational hazard. It should be investigated and either reconditioned or replaced.
Measuring Oil Quality in Oil filled electrical equipment:
- Transformers
- HV Cables
- Oil filled circuit breaker
- Capacitor
- Bushing
- CT
- PT
Standard Accessories:
- Test Lead sets
- Oil Test cell with 3 terminals
- Standard Calibrator with Tan Delta, Capacitance, Resistivity values
- Transportation case
X
Product Videos
View All
Contact Resistance Meter PCRM200S
Get QuoteTransformer Winding Resistance Meter

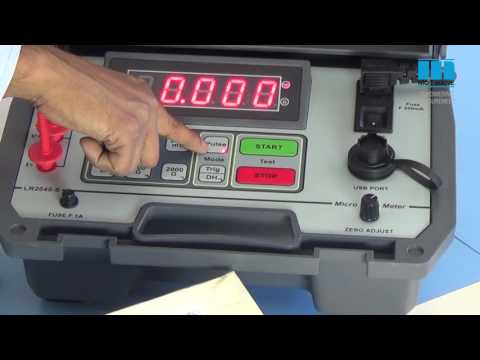

Get QuoteDigital Micro Ohm Meter LR 2045-S
